Home > Flash Memory IC >

MT46H16M32LFB5-5 IT:C TR IC DRAM 512MBIT PAR 90VFBGA Micron Technology Inc.

Product Categories
Sanhuang electronics (Hong Kong) Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

MT46H16M32LFB5-5 IT:C TR IC DRAM 512MBIT PAR 90VFBGA Micron Technology Inc.

Brand Name : Micron Technology Inc.

Model Number : MT46H16M32LFB5-5 IT:C TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : DRAM

Technology : SDRAM - Mobile LPDDR

Memory Size : 512Mbit

Memory Organization : 16M x 32

Memory Interface : Parallel

Clock Frequency : 200 MHz

Write Cycle Time - Word, Page : 15ns

Access Time : 5 ns

Voltage - Supply : 1.7V ~ 1.95V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 90-VFBGA

Supplier Device Package : 90-VFBGA (8x13)

Contact Now

Product Details

Mobile Low-Power DDR SDRAM

Features

• VDD/VDDQ = 1.70–1.95V
• Bidirectional data strobe per byte of data (DQS)
• Internal, pipelined double data rate (DDR) architecture; two data accesses per clock cycle
• Differential clock inputs (CK and CK#)
• Commands entered on each positive CK edge
• DQS edge-aligned with data for READs; center aligned with data for WRITEs
• 4 internal banks for concurrent operation
• Data masks (DM) for masking write data; one mask per byte
• Programmable burst lengths (BL): 2, 4, 8, or 16
• Concurrent auto precharge option is supported
• Auto refresh and self refresh modes
• 1.8V LVCMOS-compatible inputs
• Temperature-compensated self refresh (TCSR)
• Partial-array self refresh (PASR)
• Deep power-down (DPD)
• Status read register (SRR)
• Selectable output drive strength (DS)
• Clock stop capability
• 64ms refresh, 32ms for automotive temperature

Specifications

AttributeAttribute Value
ManufacturerMicron Technology Inc.
Product CategoryMemory ICs
Series-
Packaging Tape & Reel (TR) Alternate Packaging
Package-Case90-VFBGA
Operating-Temperature -40°C ~ 85°C (TA)
InterfaceParallel
Voltage-Supply 1.7 V ~ 1.95 V
Supplier-Device-Package90-VFBGA (8x13)
Memory Capacity 512M (16M x 32)
Memory-Type Mobile LPDDR SDRAM
Speed200MHz
Format-MemoryRAM

Descriptions

SDRAM - Mobile LPDDR Memory IC 512Mb (16M x 32) Parallel 200MHz 5.0ns 90-VFBGA (8x13)



















Quality MT46H16M32LFB5-5 IT:C TR IC DRAM 512MBIT PAR 90VFBGA Micron Technology Inc. wholesale

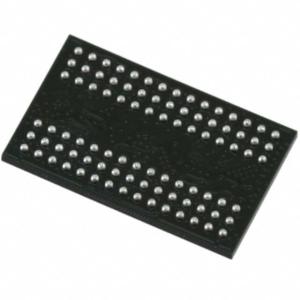

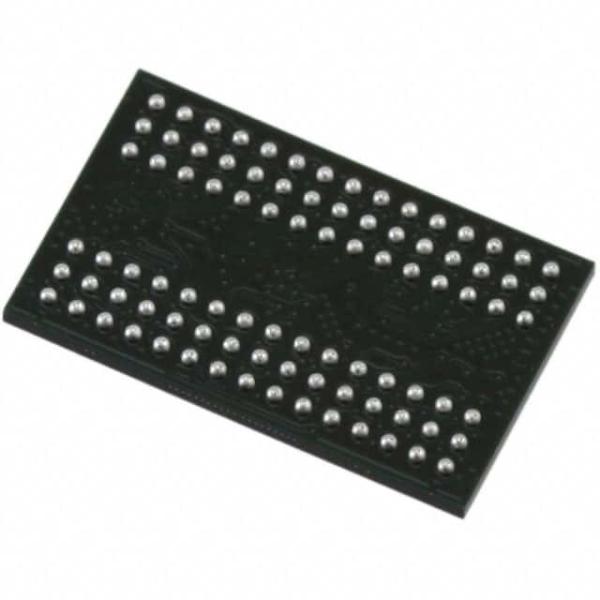

MT46H16M32LFB5-5 IT:C TR IC DRAM 512MBIT PAR 90VFBGA Micron Technology Inc. Images
