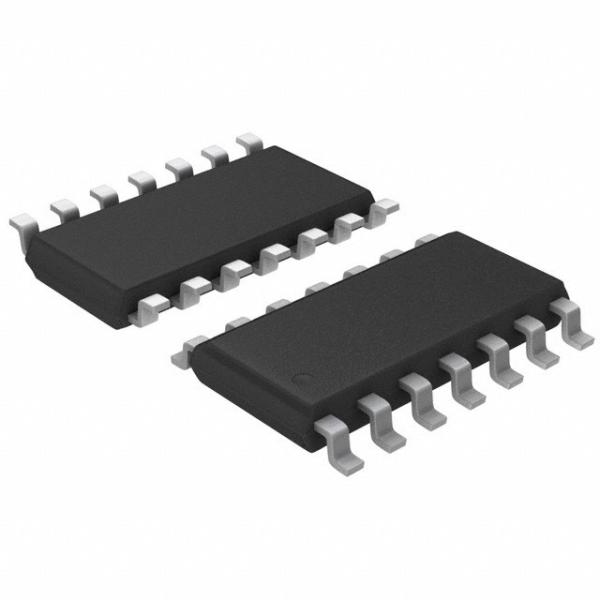

LM2902NSR IC OPAMP GP 4 CIRCUIT 14SO Texas Instruments

Name: LM2902NSR IC OPAMP GP 4 CIRCUIT 14SO Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LM2902NSR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 4

Output Type : -

Slew Rate : 0.5V/µs

Gain Bandwidth Product : 1.2 MHz

-3db Bandwidth : -

Current - Input Bias : 20 nA

Voltage - Input Offset : 3 mV

Current - Supply : 1.4mA (x4 Channels)

Current - Output / Channel : 30 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 26 V

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : 14-SOIC (0.209", 5.30mm Width)

Supplier Device Package : 14-SO

Contact Now

Product Details

DESCRIPTION

The LM124/SA534/LM2902 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages.

FEATURES

• Internally frequency-compensated for unity gain
• Large DC voltage gain: 100dB
• Wide bandwidth (unity gain): 1MHz (temperature-compensated)
• Wide power supply range Single supply: 3VDC to 30VDC or dual
supplies: ±1.5VDC to ±15VDC
• Very low supply current drain: essentially independent of supply
voltage (1mW/op amp at +5VDC)
• Low input biasing current: 45nADC (temperature-compensated)
• Low input offset voltage: 2mVDC and offset current: 5nADC
• Differential input voltage range equal to the power supply voltage
• Large output voltage: 0VDC to VCC-1.5VDC swing

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	LM2902
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.007348 oz
Mounting-Style	SMD/SMT
Technology	Bipolar
Number-of-Channels	4 Channel
Amplifier-Type	High Gain Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	3 mA
Supply-Voltage-Max	26 V
Supply-Voltage-Min	3 V
Package-Case	SOP-14
Ib-Input-Bias-Current	250 nA
Vos-Input-Offset-Voltage	7 mV
Vcm-Common-Mode-Voltage	Negative Rail to Positive Rail - 1.5 V
Output-Current-per-Channel	30 mA
CMRR-Common-Mode-Rejection-Ratio	50 dB
GBP-Gain-Bandwidth-Product	1.2 MHz
SR-Slew-Rate	0.5 V/us
en-Input-Voltage-Noise-Density	35 nV/sqrt Hz
Maximum-Dual-Supply-Voltage	+/- 13 V
Minimum-Dual-Supply-Voltage	+/- 1.5 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
LM2902NE4 Amplifier Circuits	Quadruple general-purpose operational amplifier ? 14-PDIP -40 to 125	Texas Instruments	LM2902NSR vs LM2902NE4
LM2902N/NOPB Amplifier Circuits	Low power standard quad operational amplifier 14-PDIP -40 to 85	Texas Instruments	LM2902NSR vs LM2902N/NOPB

Descriptions

General Purpose Amplifier 4 Circuit 14-SOP

Op Amp Quad GP 卤13V/26V 14-Pin SOP T/R

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Quality LM2902NSR IC OPAMP GP 4 CIRCUIT 14SO Texas Instruments wholesale

LM2902NSR IC OPAMP GP 4 CIRCUIT 14SO Texas Instruments Images
