OPA2277AIDRMT IC OPAMP GP 2 CIRCUIT 8VSON Texas Instruments

Name: OPA2277AIDRMT IC OPAMP GP 2 CIRCUIT 8VSON Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : OPA2277AIDRMT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 2

Output Type : -

Slew Rate : 0.8V/µs

Gain Bandwidth Product : 1 MHz

-3db Bandwidth : -

Current - Input Bias : 4 nA

Voltage - Input Offset : 35 µV

Current - Supply : -

Current - Output / Channel : 35 mA

Voltage - Supply Span (Min) : 4 V

Voltage - Supply Span (Max) : 36 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 8-VDFN Exposed Pad

Supplier Device Package : 8-VSON (4x4)

Contact Now

Product Details

DESCRIPTION

The UTC OPA2336 is a CMOS operational amplifier. It is operated on a 2.1V (Min.) single supply. A100kΩ load is driven by the rail-to-rail output and the accuracy of the output voltage is ensured at ± 3mV.
The UTC OPA2336 is characterized by its low quiescent current (20μA/amplifier), low offset voltage (125μV max), low input bias current (1pA), and high open-loop gain (115dB).
The UTC OPA2336 features completely independent circuitry for lowest crosstalk and freedom from interaction.
The UTC OPA2336 is particularly designed for battery-powered applications and the common-mode range extending to the negative supply makes it ideal for single-supply applications.
In addition to the applications mentioned above, the UTC OPA2336 is suitable for portable devices, high-Impedance applications, photodiode, pre-amps, precision integrators, medical instruments, and test equipment.

FEATURES

* Operating on a Single-Supply
* Rail-to-Rail Output (Accuracy: ± 3mv)
* Low Power Dissipation: IQ=20μA/Amplifier
* Low Offset Voltage up to 125μV (MAX.)
* Power Supply Specified from 2.3V to 5.5V
* Halogen Free

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	OPA2277
Product	Precision Amplifiers
Packaging	Reel
Unit-Weight	0.000847 oz
Mounting-Style	SMD/SMT
Technology	Bipolar
Number-of-Channels	2 Channel
Amplifier-Type	Low Offset Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	1.65 mA
Package-Case	VSON-8
Ib-Input-Bias-Current	2.8 nA
Vos-Input-Offset-Voltage	100 uV
Vcm-Common-Mode-Voltage	Negative Rail + 2 V to Positive Rail - 2 V
CMRR-Common-Mode-Rejection-Ratio	115 dB
GBP-Gain-Bandwidth-Product	1 MHz
SR-Slew-Rate	0.8 V/us
en-Input-Voltage-Noise-Density	12 nV/sqrt Hz
Voltage-Gain-dB	140 dB
In-Input-Noise-Current-Density	0.2 pA/sqrt Hz

Descriptions

General Purpose Amplifier 2 Circuit 8-VSON (4x4)

Op Amp Dual GP 卤18V 8-Pin VSON EP T/R

Precision Amplifiers High Precision Oper Amplifier

Quality OPA2277AIDRMT IC OPAMP GP 2 CIRCUIT 8VSON Texas Instruments wholesale

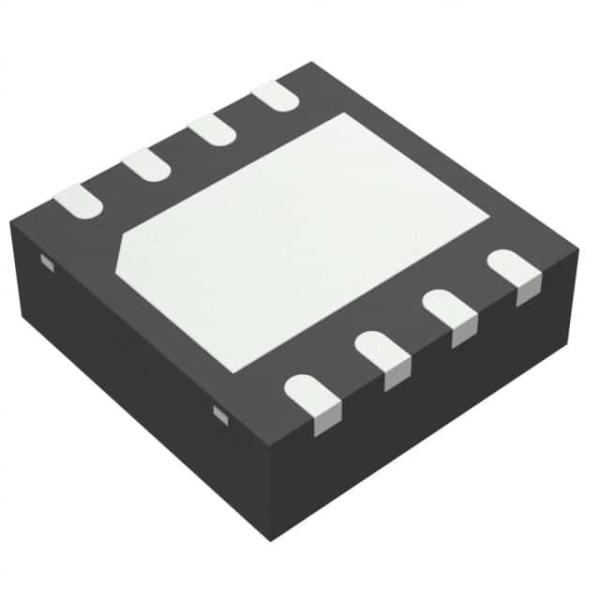

OPA2277AIDRMT IC OPAMP GP 2 CIRCUIT 8VSON Texas Instruments Images
