BA10324AF-E2 IC OPAMP GP 4 CIRCUIT 14SOP Rohm Semiconductor

Name: BA10324AFE2 IC OPAMP GP 4 CIRCUIT 14SOP Rohm Semiconductor
Brand: Rohm Semiconductor
Price: 1 USD

Brand Name : Rohm Semiconductor

Model Number : BA10324AF-E2

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 4

Output Type : -

Slew Rate : 0.2V/µs

Gain Bandwidth Product : 500 kHz

-3db Bandwidth : -

Current - Input Bias : 20 nA

Voltage - Input Offset : 2 mV

Current - Supply : 600µA

Current - Output / Channel : 35 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 32 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 14-SOIC (0.173", 4.40mm Width)

Supplier Device Package : 14-SOP

Contact Now

Product Details

ROHM’s Selection Operational Amplifier / Comparator Series Operational Amplifiers: Ground Sense

Description

General-purpose BA10358/BA10324A family and high-reliability BA2904S/BA2904/BA2902S/BA2902 family and automotive BA2904HFVM-C integrate two or four independent Op-Amps andphase compensation capacitors on a single chip andhave some features of high-gain, low power consumption,and operating voltage range of 3[V] to 32[V] (single powersupply ).
BA3404 family is realized high speed operation andreduce the crossover distortions that compare with BA10358/ BA2904 family.

Characteristics

1) Operable with a single power supply
2) Wide operating supply voltage
+3.0[V]～ +32.0[V](single supply)
(BA10358/BA10324A/BA2904S/BA2904/BA2902S/BA2902 family,BA2904HFVM-C)
+4.0[V]～ +36.0[V](single supply)
(BA3404 family)
3) Standard Op-Amp Pin-assignments
4) Input and output are operable GND sense
5) Internal phase compensation type
6) Low supply current
7) High open loop voltage gain
8) Internal ESD protection
Human body model(HBM) ±5000[V](Typ.)
(BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C)
9) Gold PAD (BA2904S/BA2904/BA2902S/BA2902/BA3404 family,BA2904HFVM-C)
10) Wide temperature range
-40[℃ ]～ +125[℃ ] (BA2904/BA2902 family,BA2904HFVM-C)
-40[℃ ]～ +105[℃ ] (BA2904S/BA2902S family)
-40[℃ ]～ +85[℃ ] (BA10358/BA10324/BA3404 family)

Specifications

Attribute	Attribute Value
Manufacturer	ROHM
Product Category	Instrumentation Amplifier
Series	BA10324A
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.008501 oz
Mounting-Style	SMD/SMT
Technology	Bipolar
Number-of-Channels	4 Channel
Amplifier-Type	Ground Sense Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	600 uA
Supply-Voltage-Max	32 V
Supply-Voltage-Min	3 V
Package-Case	SOP-14
Ib-Input-Bias-Current	250 nA
Vos-Input-Offset-Voltage	7 mV
PSRR-Power-Supply-Rejection-Ratio	65 dB
Output-Current-per-Channel	35 mA
CMRR-Common-Mode-Rejection-Ratio	65 dB
GBP-Gain-Bandwidth-Product	500 kHz
SR-Slew-Rate	0.2 V/us
Maximum-Dual-Supply-Voltage	+/- 16 V
Minimum-Dual-Supply-Voltage	+/- 1.5 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
BA10324AFE2 Amplifier Circuits	QUAD OP-AMP, 7000uV OFFSET-MAX, 0.5MHz BAND WIDTH, PDSO14, ROHS COMPLIANT, SOP-14	ROHM Semiconductor	BA10324AF-E2 vs BA10324AFE2
BA10324AF-E1 Amplifier Circuits	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14, SOP-14	ROHM Semiconductor	BA10324AF-E2 vs BA10324AF-E1
BA10324AF Amplifier Circuits	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14, ROHS COMPLIANT, SOP-14	ROHM Semiconductor	BA10324AF-E2 vs BA10324AF

Descriptions

General Purpose Amplifier 4 Circuit 14-SOP

Operational Amplifiers - Op Amps OPAMP QUAD 32V

Quality BA10324AF-E2 IC OPAMP GP 4 CIRCUIT 14SOP Rohm Semiconductor wholesale

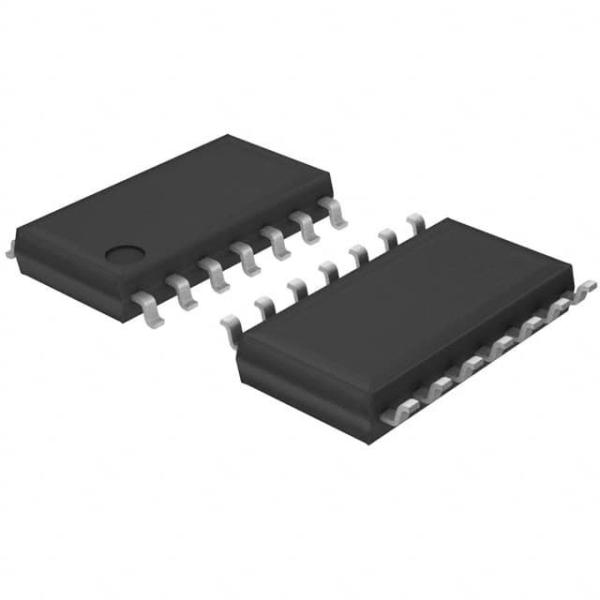

BA10324AF-E2 IC OPAMP GP 4 CIRCUIT 14SOP Rohm Semiconductor Images
