R5F564MFCDBG#21 IC MCU 32BIT 2MB FLASH 176LFBGA Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : R5F564MFCDBG#21

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : RXv2

Core Size : 32-Bit Single-Core

Speed : 120MHz

Connectivity : CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB

Peripherals : DMA, LVD, POR, PWM, WDT

Number of I/O : 127

Program Memory Size : 2MB (2M x 8)

Program Memory Type : FLASH

EEPROM Size : 64K x 8

RAM Size : 552K x 8

Voltage - Supply (Vcc/Vdd) : 2.7V ~ 3.6V

Data Converters : A/D 29x12b; D/A 2x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 176-LFBGA

Supplier Device Package : 176-LFBGA (13x13)

Contact Now

Product Details

[Walsin Technology Corporation]

DESCRIPTION

MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used.
WTC’s MLCC is made by NP0, X7R and Y5V dielectric material and which provides product with high electrical precision, stability and reliability.

FEATURES

a. A wide selection of sizes is available (0402 to 1812).
b. High capacitance in given case size.
c. Capacitor with lead-free termination (pure Tin).

APPLICATIONS

a. For general digital circuit.
b. For power supply bypass capacitors.
c. For consumer electronics.
d. For telecommunication.

Specifications

Attribute Attribute Value
Manufacturer Renesas Electronics America
Product Category Microcontrollers
Series RX600
Packaging Tray
Package-Case 176-LFBGA
Operating-Temperature -40°C ~ 85°C (TA)
Supplier-Device-Package 176-LFBGA (13x13)
Number-of-I-O 127 I/O
Speed 120MHz
EEPROM-Size 64K x 8
Core-Processor RXv2
RAM-Size 552K x 8
Program Memory FLASH
Peripherals DMA, LVD, POR, PWM, WDT
Connectivity CAN, EBI/EMI, Ethernet, I2C, LIN, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Voltage-Supply-Vcc-Vdd 2.7 V ~ 3.6 V
Core-Size 32-Bit
Program-Memory-Size 2MB (2M x 8)
Data-Converters A/D 29x12b, D/A 1x12
Oscillator-Type Internal

Descriptions

RXv2 RX600 Microcontroller IC 32-Bit 120MHz 2MB (2M x 8) FLASH 176-LFBGA (13x13)
MCU 32-bit RX RISC 2MB Flash 3.3V 176-Pin LFBGA Tray

Quality R5F564MFCDBG#21 IC MCU 32BIT 2MB FLASH 176LFBGA Renesas Electronics America Inc wholesale

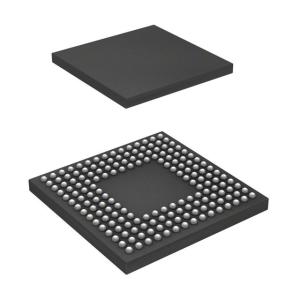

R5F564MFCDBG#21 IC MCU 32BIT 2MB FLASH 176LFBGA Renesas Electronics America Inc Images
