LPC1768FET100,551 IC MCU 32BIT 512KB FLSH 100TFBGA N✖P USA Inc.

Name: LPC1768FET100551 IC MCU 32BIT 512KB FLSH 100TFBGA NP USA Inc
Brand: N✖P USA Inc.
Price: 1 USD

Brand Name : N✖P USA Inc.

Model Number : LPC1768FET100,551

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : ARM® Cortex®-M3

Core Size : 32-Bit Single-Core

Speed : 100MHz

Connectivity : CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG

Peripherals : Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT

Number of I/O : 70

Program Memory Size : 512KB (512K x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 64K x 8

Voltage - Supply (Vcc/Vdd) : 2.4V ~ 3.6V

Data Converters : A/D 8x12b; D/A 1x10b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 100-TFBGA

Supplier Device Package : 100-TFBGA (9x9)

Contact Now

Product Details

Features and benefits

* ARM Cortex-M3 processor, running at frequencies of up to 100 MHz
(LPC1768/67/66/65/64/63) or ofup to 120 MHz (LPC1769). A Memory Protection Unit
(MPU) supporting eight regions is included.
* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
* Up to 512 kB on-chip flash programming memory. Enhanced flash memory accelerator
enables high-speed 120 MHz operation with zero wait states.
* In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software.
* On-chip SRAM includes:
* 32/16 kB of SRAM on the CPU with local code/data bus for high-performance CPU
access.

Specifications

Attribute	Attribute Value
Manufacturer	N✖P Semiconductors
Product Category	Microcontrollers
Series	LPC17xx
Packaging	Tray Alternate Packaging
Package-Case	100-TFBGA
Operating-Temperature	-40°C ~ 85°C (TA)
Supplier-Device-Package	100-TFBGA (9x9)
Number-of-I-O	70 I/O
Speed	100MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M3
RAM-Size	64K x 8
Program Memory	FLASH
Peripherals	Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
Connectivity	CAN, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
Voltage-Supply-Vcc-Vdd	2.4 V ~ 3.6 V
Core-Size	32-Bit
Program-Memory-Size	512KB (512K x 8)
Data-Converters	A/D 8x12b, D/A 1x10b
Oscillator-Type	Internal

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
LPC1768FET100 Microcontrollers and Processors	32-BIT, FLASH, 100MHz, RISC MICROCONTROLLER, PBGA100, 9 X 9 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, PLASTIC, SOT-926-1, TFBGA-100	N✖P Semiconductors	LPC1768FET100,551 vs LPC1768FET100

Descriptions

ARM? Cortex?-M3 LPC17xx Microcontroller IC 32-Bit 100MHz 512KB (512K x 8) FLASH 100-TFBGA (9x9)

MCU 32-bit ARM Cortex M3 RISC 512KB Flash 3.3V 100-Pin TFBGA Tray

ARM Microcontrollers - MCU 32b 512K Flash 70I/O

Quality LPC1768FET100,551 IC MCU 32BIT 512KB FLSH 100TFBGA N✖P USA Inc. wholesale

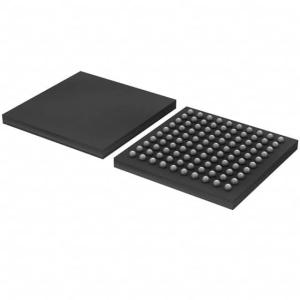

LPC1768FET100,551 IC MCU 32BIT 512KB FLSH 100TFBGA N✖P USA Inc. Images
